2-Inch Universal Precision Sine Adjustable Angle Vise with 360° Rotation for Grinding, Milling, Drilling & CNC Machines

Name: 2-Inch Universal Precision Sine Adjustable Angle Vise with 360° Rotation for Grinding, Milling, Drilling & CNC Machines
Brand: Innocraftsman
Price: 443.0 USD
Availability: InStock

2-Inch Universal Precision Sine Adjustable Angle Vise with 360° Rotation for Grinding, Milling, Drilling & CNC Machines

$443.00 USD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

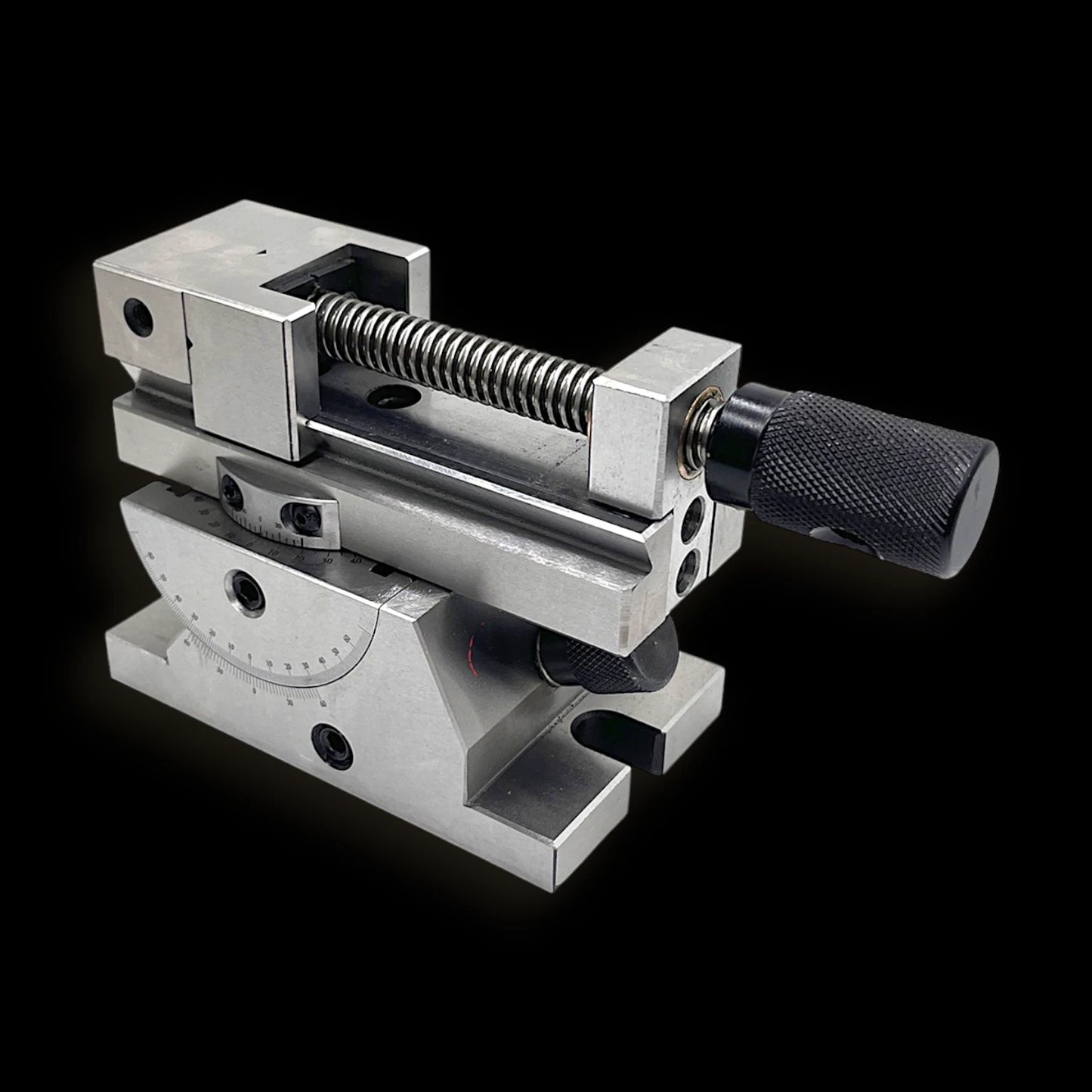

The 2-Inch Universal Precision Sine Vise for Grinding and Milling Machines is designed for ultra-precise machining applications requiring accurate angular positioning and rigid clamping performance. Ideal for surface grinding, milling, EDM, and precision machining operations.

This universal precision vise allows secure clamping of workpieces at precise angles from 0° to 45° in the vertical plane, making it perfect for machining flat, angled, and inclined surfaces as well as angled holes.

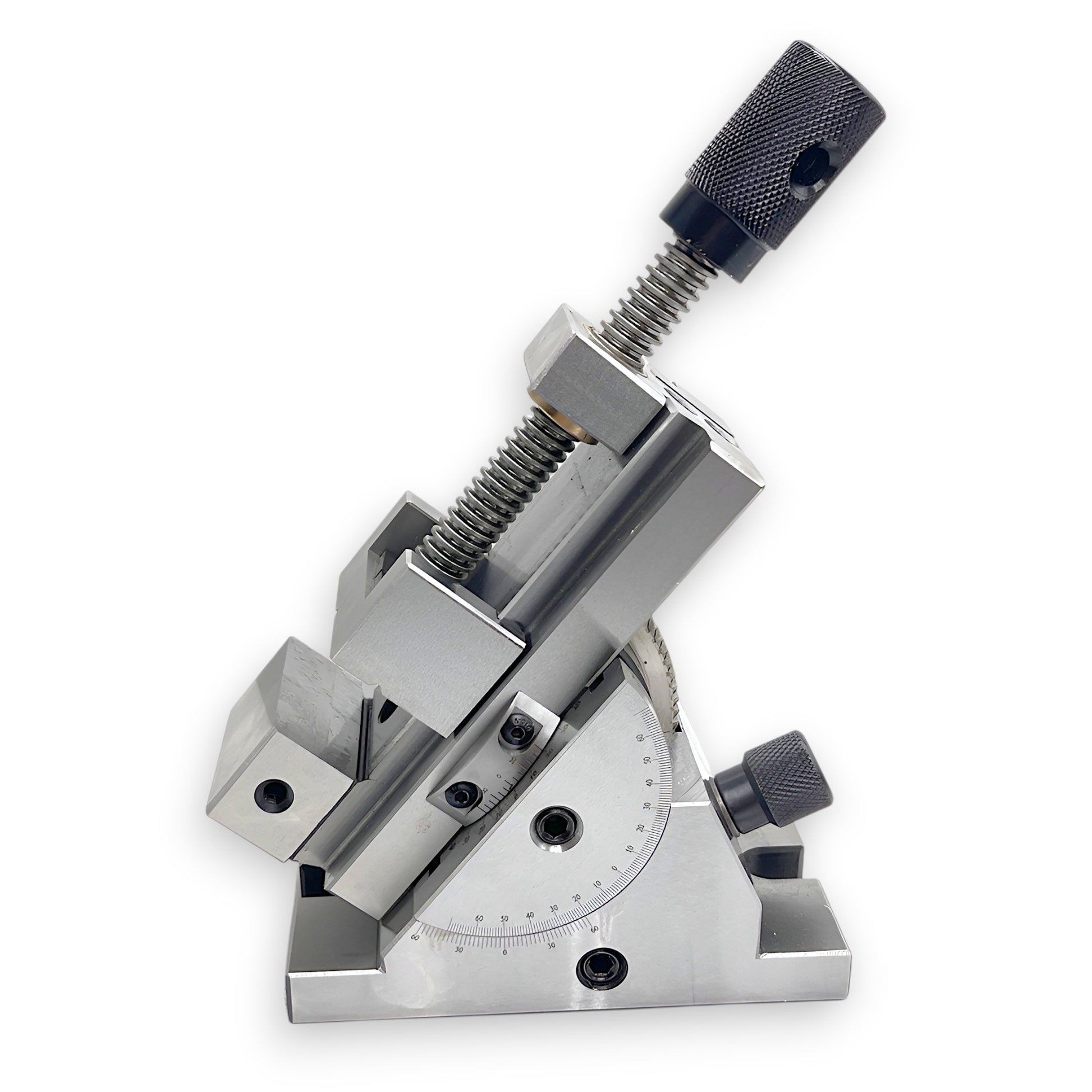

The vise features a fully adjustable universal design with 360° horizontal rotation and 0–45° vertical tilting capability. Clear and accurate angle scales ensure fast, convenient, and repeatable positioning during operation.

Manufactured from hardened tool steel for maximum durability and precision, the vise delivers excellent machining stability and long service life.

Perfect for precision drilling of angled holes and machining inclined surfaces with accurate 0–45° vertical angle adjustment.

Applications:

Surface grinding
Milling machines
EDM machines
Precision honing
Machining inclined surfaces and angular holes

Product Features:

360° universal rotation
0–45° vertical tilting adjustment
High-precision angle positioning
Hardened tool steel construction
Clear and accurate engraved scales
Suitable for high-precision machining tasks

Technical Specifications:

Total height: 102mm
Weight: 5KG
Material: Steel
Base Material: SUS440
Base size (L x W x H): 127mm x 73mm x 55mm
Hardness: HRC 55–58°
Rotating Shaft Material: 40Cr Steel
Jaw Width: 50mm (2 inch)
Jaw Height: 23.5mm
Maximum clamping capacity: 70mm
Parallelism: 0.005mm / 100mm
Verticality: 0.005mm / 100mm
