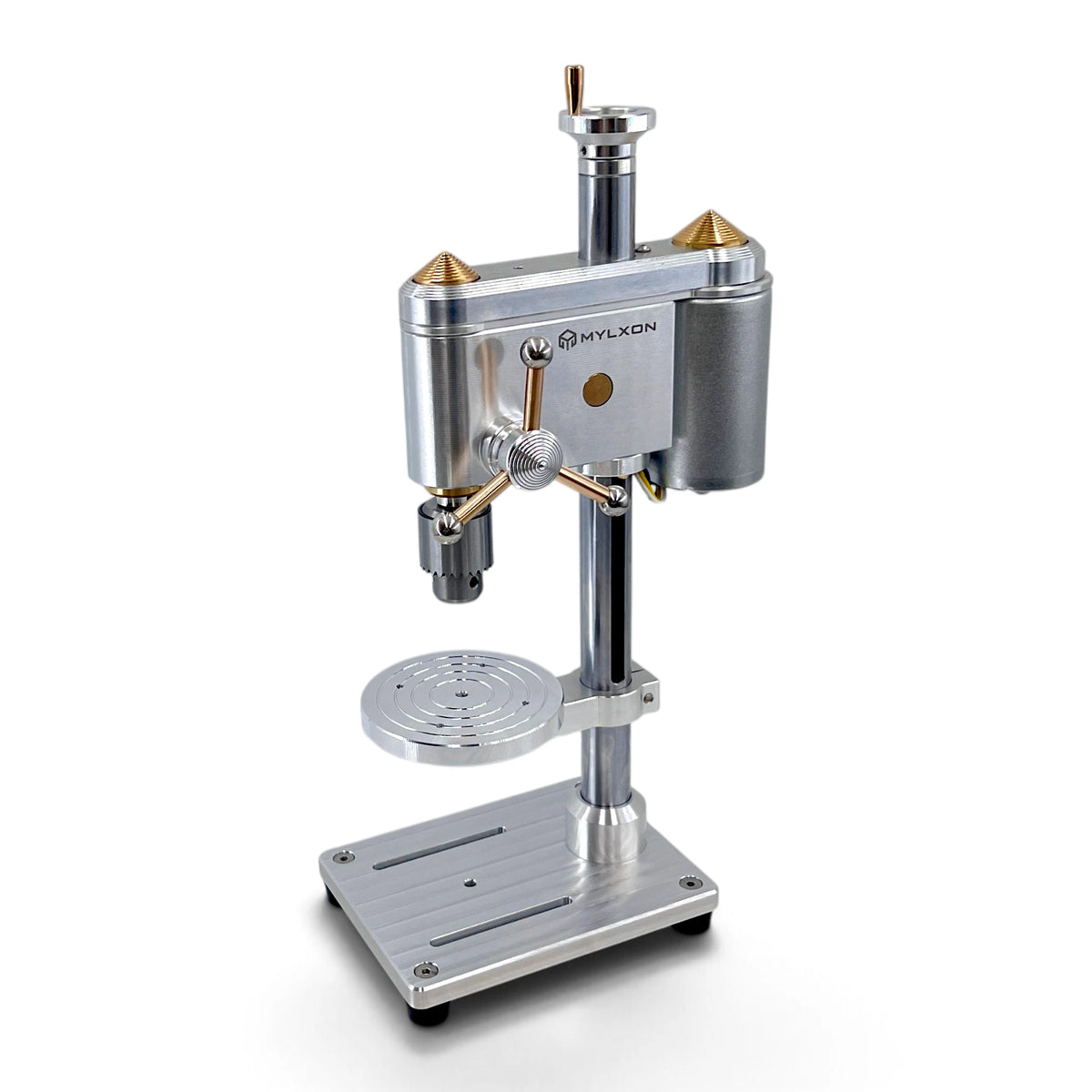

MYLXON IN-778 Precision Mini Drill Press with Lifting Column

MYLXON IN-778 Precision Mini Drill Press with Lifting Column

$299.00 USD
$299.00 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet

Spindle type

1. Precision Brushless Belt-Drive System

Smooth and quiet brushless motor with 200–5,000 RPM variable speed and synchronous belt drive for stable, low-vibration precision drilling.

2. Adjustable Lifting Column

Raise or lower the entire drill head along the rigid 18 mm (0.71 in) steel column. Up to 150 mm (5.91 in) spindle-to-base clearance provides the flexibility to work with different workpiece heights, vises, and fixtures.

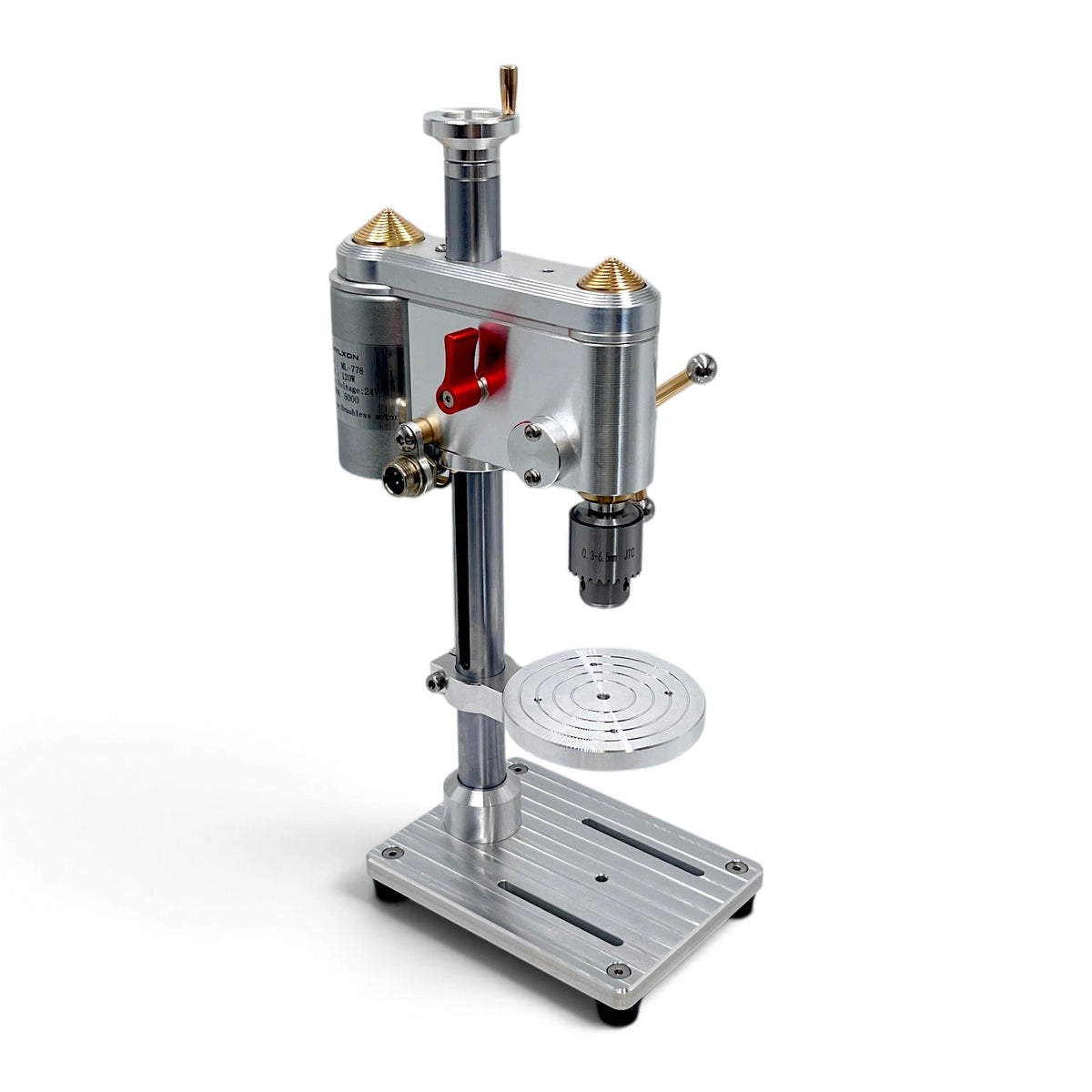

3. Two Precision Chuck Options

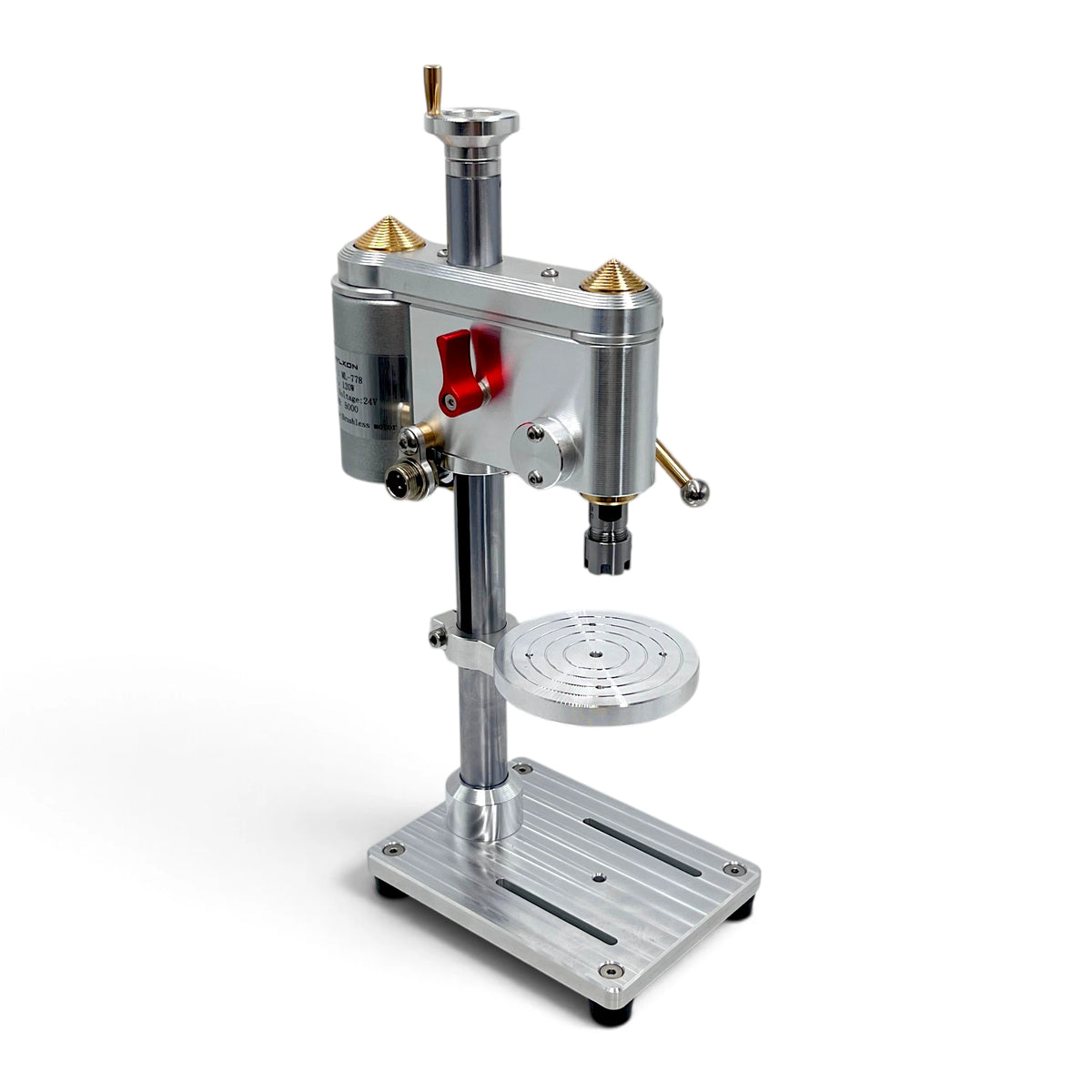

Choose the Universal Precision Chuck — 0.3–6.5 mm (0.012–0.26 in) for maximum versatility, or the ER11M Collet Chuck with approx. 0.001 mm (0.00004 in) runout for applications requiring maximum precision.

4. Compatible with XY / XYZ / XYZR Precision Tables

Transform the IN-778 into a more versatile precision workstation with compatible XY , XYZ , XYZR cross-slide tables for controlled multi-axis positioning, repetitive drilling, light milling, engraving, and other detailed operations.

5. 360° Adjustable Round Worktable

The included aluminum-alloy Round Worktable can be raised, lowered, and rotated 360° around the column. Use it together with the main base to create two working positions and quickly switch between workpieces without rebuilding your setup.

Build Your Own Precision Workstation

The MYLXON IN-778 is designed as more than a compact drill press. Its lifting column, 360° Round Worktable, precision vises, and compatibility with XY / XYZ / XYZR cross-slide tables allow you to configure the machine around the job at hand.

MYLXON IN-778 Precision Mini Brushless Drill Press with Lifting Column & 360° Worktable

More Working Space. More Adjustability. More Ways to Work.

The MYLXON IN-778 is the next generation of our precision mini drill press, designed for applications where accuracy, flexibility, and compact size are equally important.

Building on the proven design of the IN-776, the IN-778 introduces a new lifting-column system, a larger drill head with increased body length, a stronger 18 mm (0.71 in) steel column, and a new 360° adjustable round worktable.

The lifting mechanism allows the entire drill head to move vertically along the column, making it easy to accommodate workpieces, vises, fixtures, and accessories of different heights. At the same time, the independent round worktable can be raised, lowered, rotated around the column, or moved completely out of the working area.

With a 200–5,000 RPM brushless motor, synchronous belt drive, 19 mm (0.75 in) spindle travel, and a choice between a versatile Universal Precision Chuck and an ultra-low-runout ER11M spindle, the IN-778 is designed for precision drilling across a wide range of materials, including aluminum, brass, copper, bronze, silver, gold, tin, zinc and other soft non-ferrous metals, as well as wood, plastics, acrylic, PCB materials, and composites. Steel up to 3 mm (0.12 in) thick can also be drilled when using appropriate carbide or other specialized drill bits. For delicate precision work, the machine can make a micro holes  from 0.1 mm (0.004 in) and achieve positioning accuracy of up to 0.01 mm (0.0004 in) when used with a suitable precision vise or XY positioning table. It is ideal for jewelry making, watch repair, electronics and PCB work, model building, engraving, musical instrument making and repair, and other detailed workshop applications.

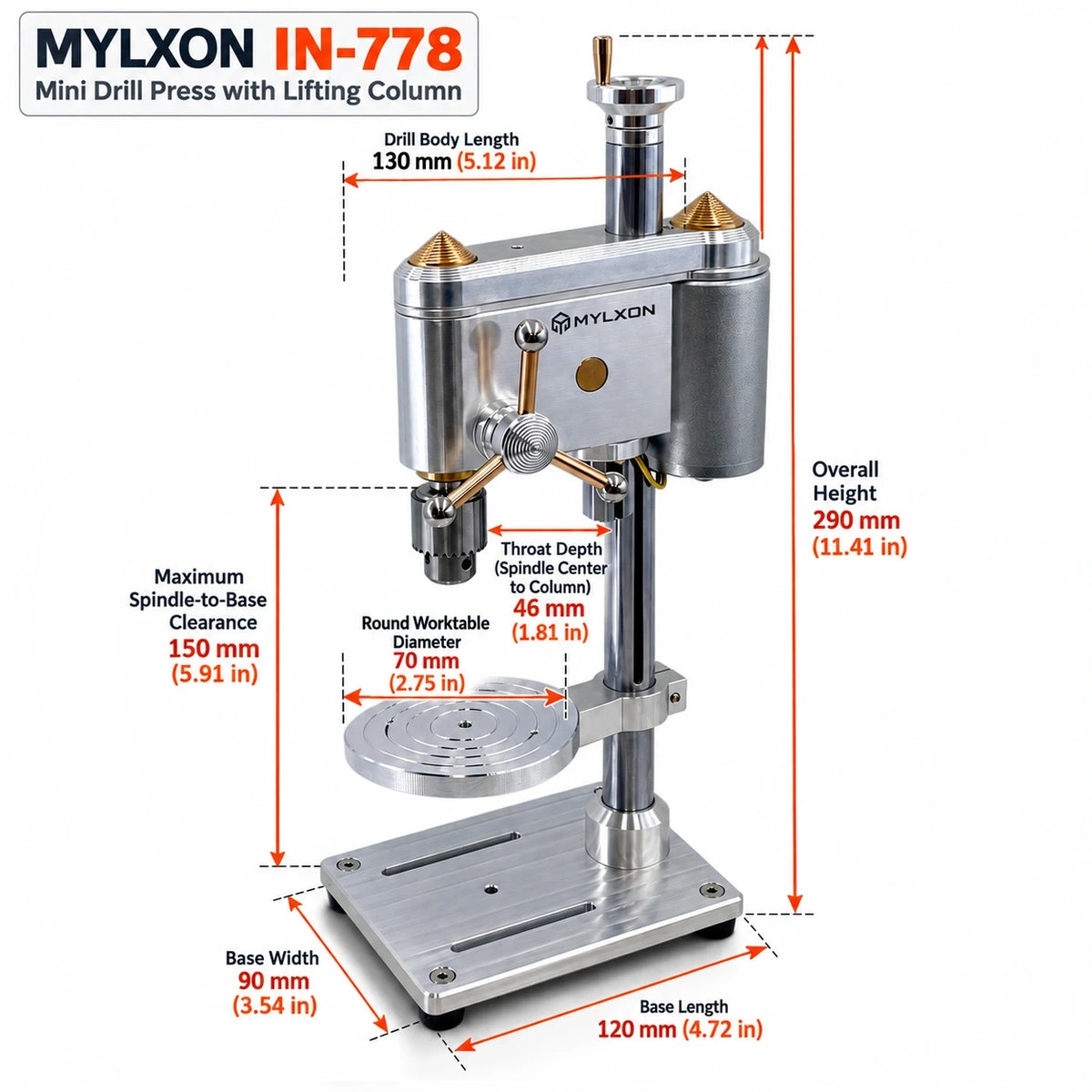

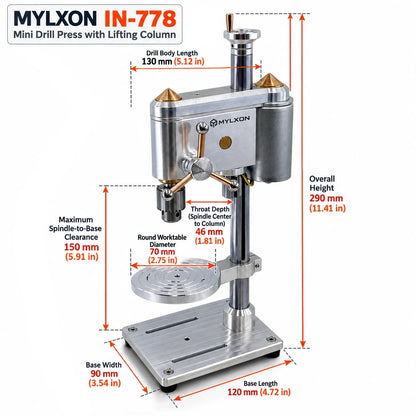

Technical Specifications

Specification MYLXON IN-778
Motor Type Brushless
Speed Range 200–5,000 RPM
Drive System Synchronous belt drive
Belt Type 2GT-252 synchronous timing belt
Universal Chuck Capacity 0.3–6.5 mm (0.012–0.26 in)
Universal Chuck Runout Approx. 0.05 mm (0.002 in)
ER11M Included Collet 3.175 mm (1/8 in)
ER11M Runout Approx. 0.001 mm (0.00004 in)
Drilling Stroke / Spindle Travel 19 mm (0.75 in)
Maximum Spindle-to-Base Clearance 150 mm (5.91 in)
Throat Depth (Spindle Center to Column) 46 mm (1.81 in)
Column Diameter 18 mm (0.71 in)
Column Length 250 mm (9.84 in)
Overall Height 290 mm (11.41 in)
Drill Body Length 130 mm (5.12 in)
Drill Body Height 64 mm (2.52 in)
Base Dimensions 120 × 90 mm (4.72 × 3.54 in)
Base Mounting Slot Spacing 50 mm (1.97 in), center-to-center
Mounting Slot Length 53 mm (2.09 in)
Mounting Slot Width 4 mm (0.16 in)
Round Worktable Rotation 360° around column
Round Worktable Diameter 70 mm (2.75 in)
Round Worktable Hole Spacing 32 mm (1.26 in), center-to-center
Approx. Net Weight 1.644 g (3.61 lb)
Power Supply Adjustable 3–24 V / 6 A — included
Power Supply Input 100–240 V AC
Power Supply Output 3–24 V DC
Main Body / Base / Worktable Solid aluminum alloy
Column Steel
Pulleys / Spindle / Handles Brass


MYLXON IN-778 vs. IN-776

Both machines use a brushless motor, 200–5,000 RPM speed range, synchronous belt drive, 19 mm (0.75 in) spindle travel, and are available with Universal or ER11M spindle configurations. The IN-778 builds on this platform with greater adjustment range and more working space.

Feature IN-776 NEW IN-778
Brushless Motor ✓ ✓
Speed Range 200–5,000 RPM 200–5,000 RPM
Spindle Travel 19 mm (0.75 in) 19 mm (0.75 in)
Column Diameter 16 mm (0.63 in) 18 mm (0.71 in)
Standard Column Length 200 mm (7.87 in) 250 mm (9.84 in)
Max. Spindle-to-Base Clearance Approx. 120 mm (4.72 in) 150 mm (5.91 in)
Adjustable Lifting Drill Head — ✓
Increased Throat Depth 38 mm 46 mm (1.81 in)
360° Round Worktable — ✓ Included
Dual-Workstation Capability — ✓
Universal Chuck Option ✓ ✓
ER11M Precision Option ✓ ✓
Approx. Weight 1.425 g (3.14 lb) ~1.644 g (3.61 lb)



Designed for Precision Work

The IN-778 is particularly well suited for:

Watchmaking & Watch Repair — precision drilling of small components and controlled work with miniature parts.

Jewelry Making — drilling precious metals, small components, pendants, rings, and other detailed pieces.

Electronics & PCB Work — accurate drilling with small-diameter and micro drill bits.

Model Making & Miniatures — controlled drilling in brass, aluminum, plastics, wood, and other model-making materials.

Engraving & Small Workshop Projects — ideal where a full-size drill press is unnecessarily large but handheld drilling cannot provide sufficient control.

Musical Instrument Making & Repair — suitable for precision micro-drilling, hole positioning, and detailed component work in harmonicas, guitars, violins, woodwind instruments, and other musical instruments requiring small, accurately positioned hole
