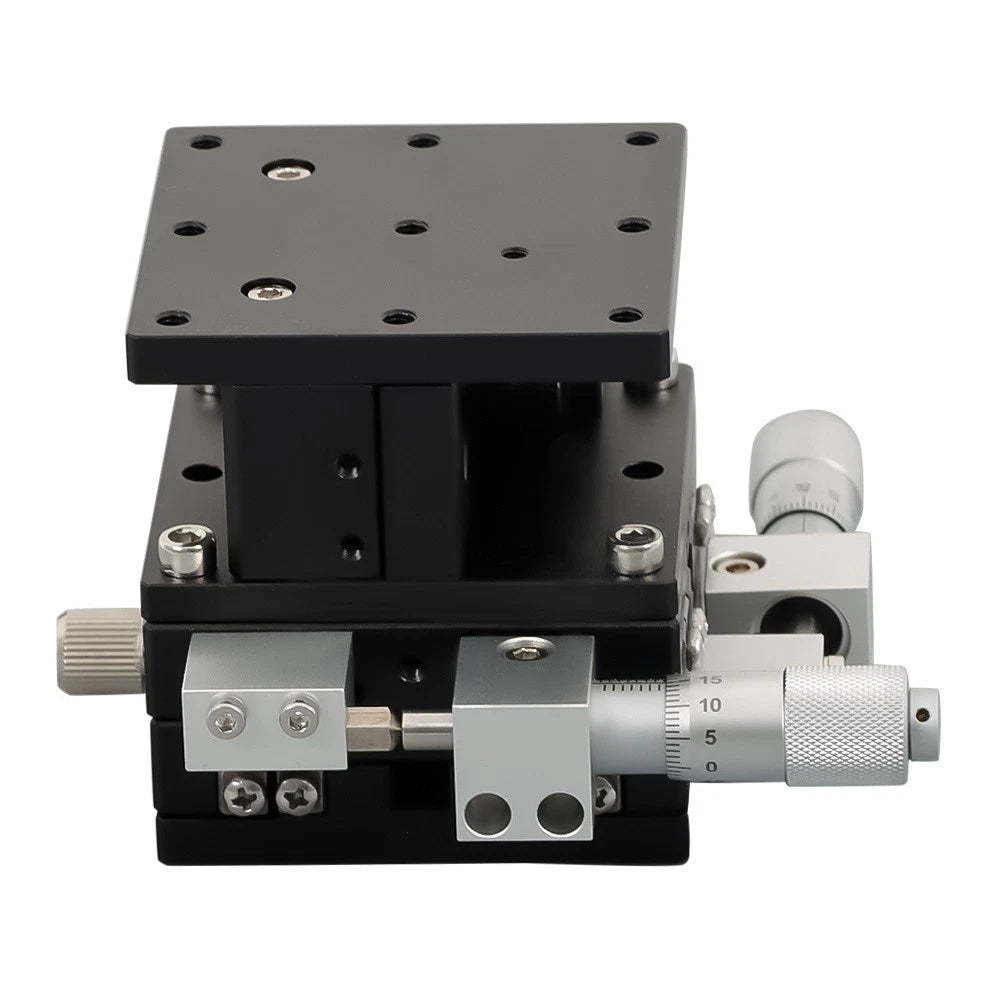

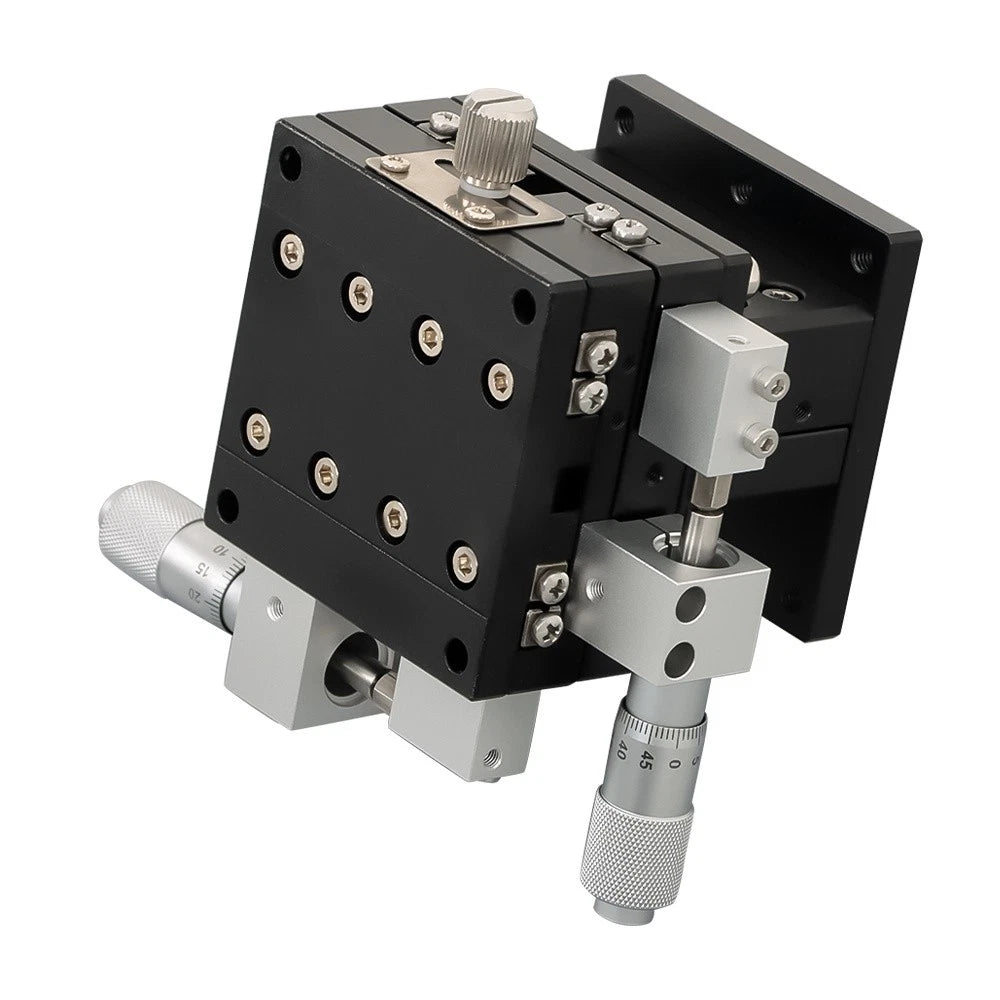

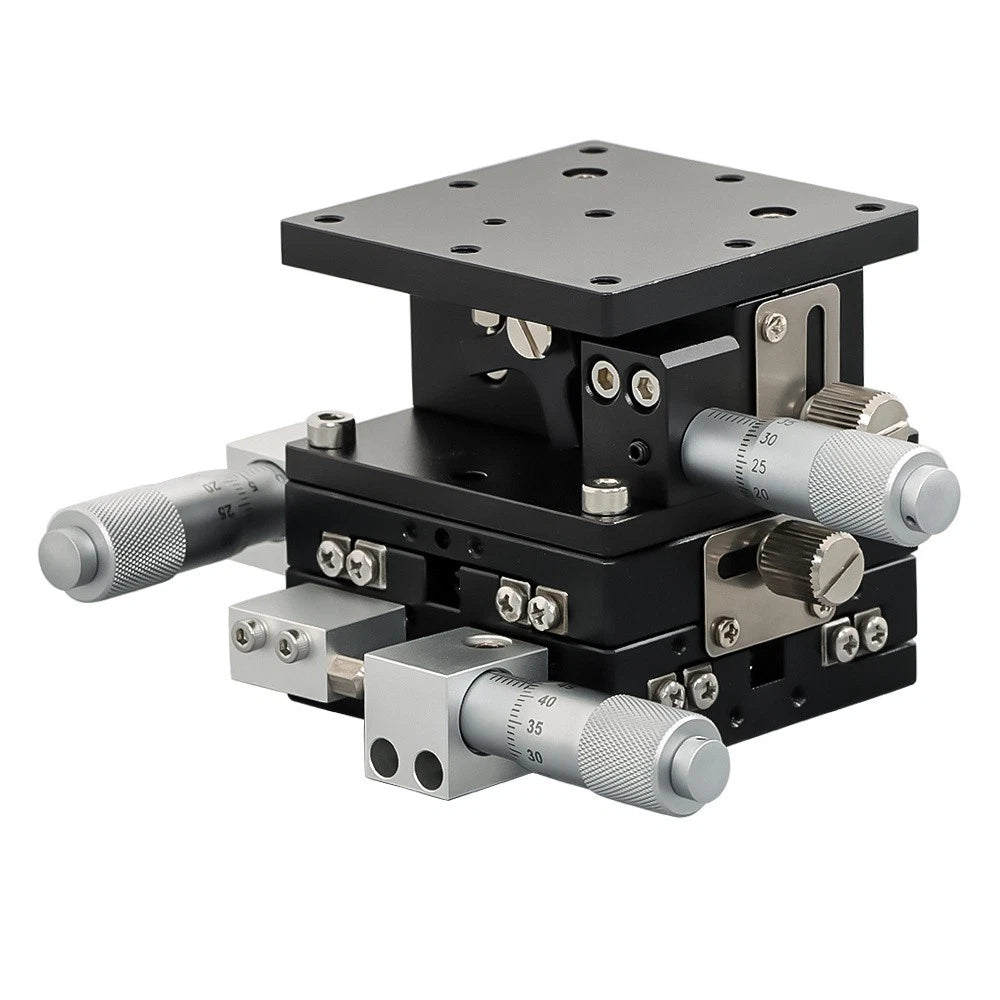

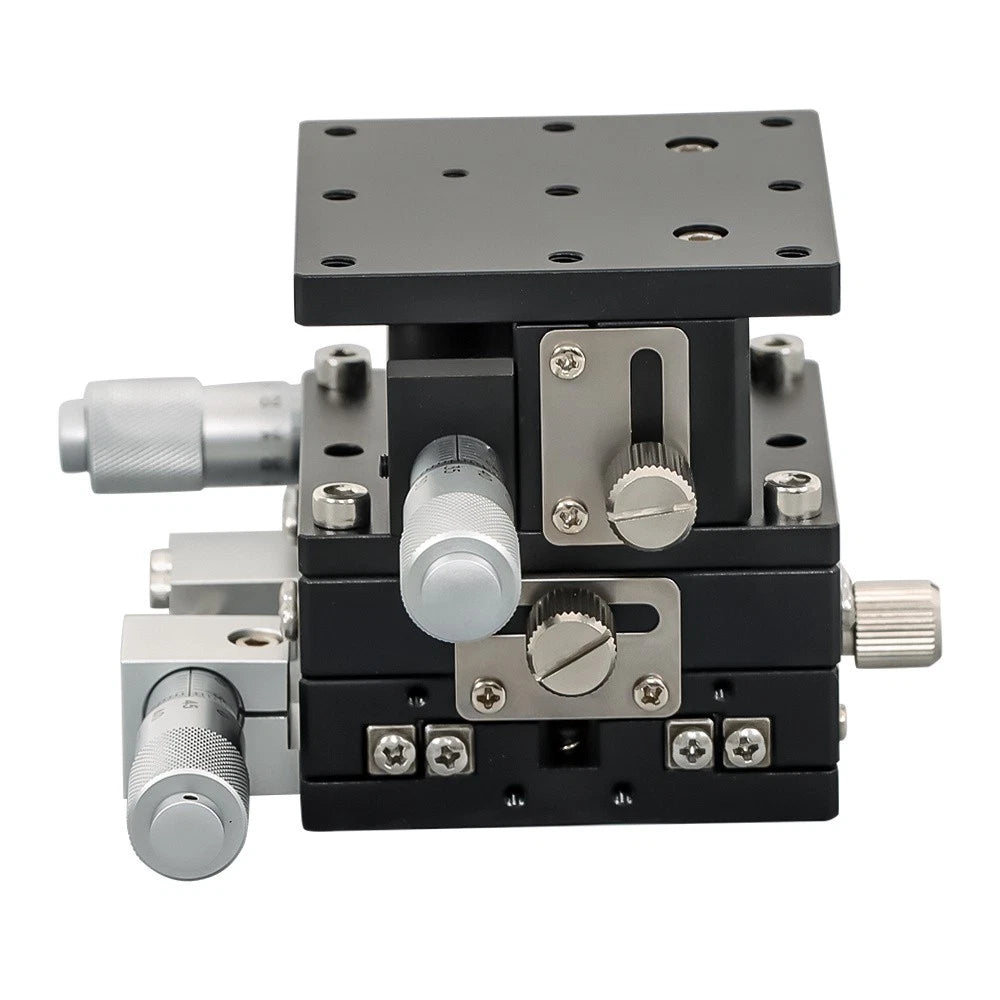

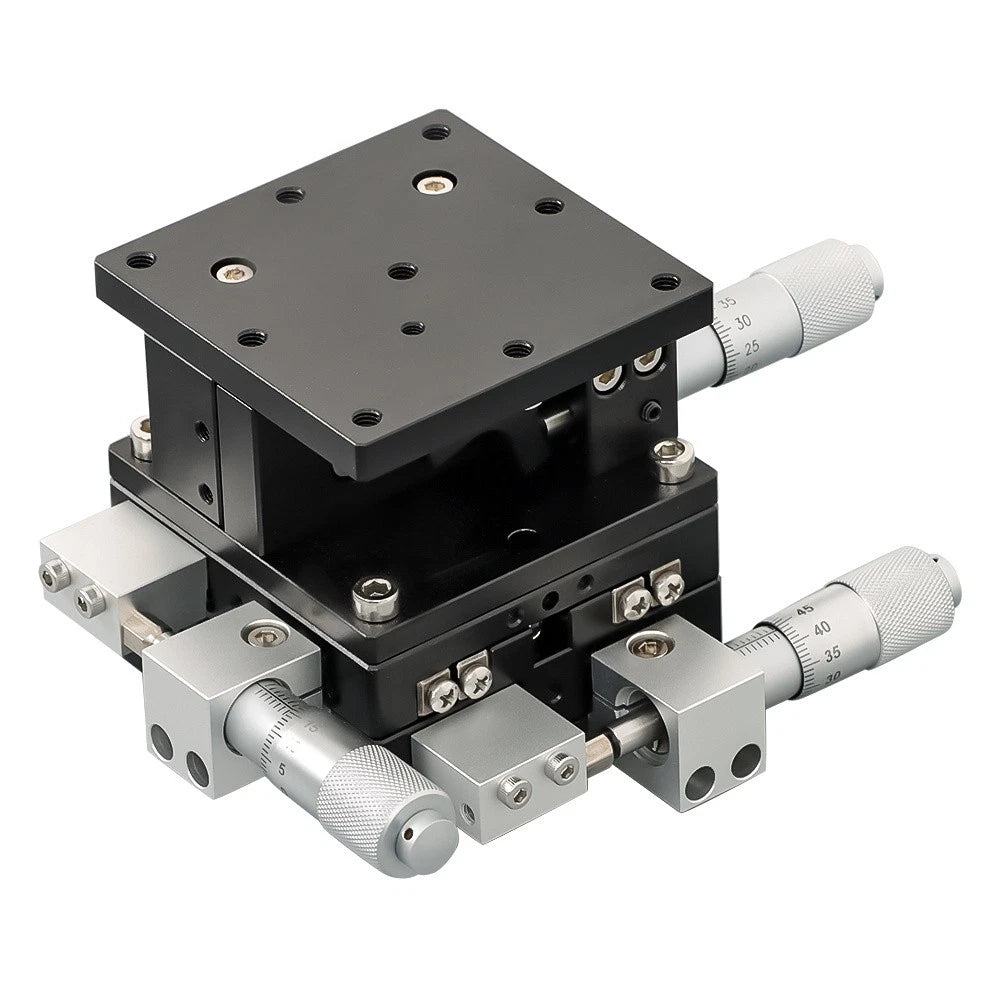

XYZ Axis Precision Fine Tuning Cross Slide 60x60mm

Name: XYZ Axis Precision Fine Tuning Cross Slide 60x60mm
Brand: Innocraftsman
SKU: 14:193#Precision Slide
Price: 158.0 USD
Availability: InStock

XYZ Axis Precision Fine Tuning Cross Slide 60x60mm

$158.00 USD

~~$85.00 USD~~ $158.00 USD

Sale Sold out

Shipping calculated at checkout.

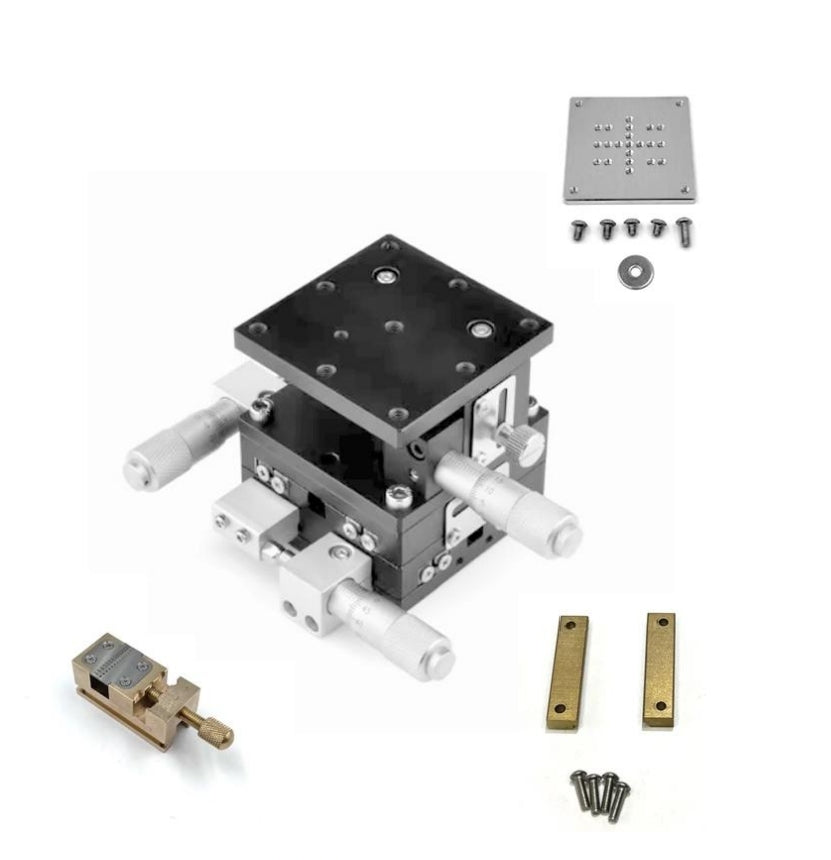

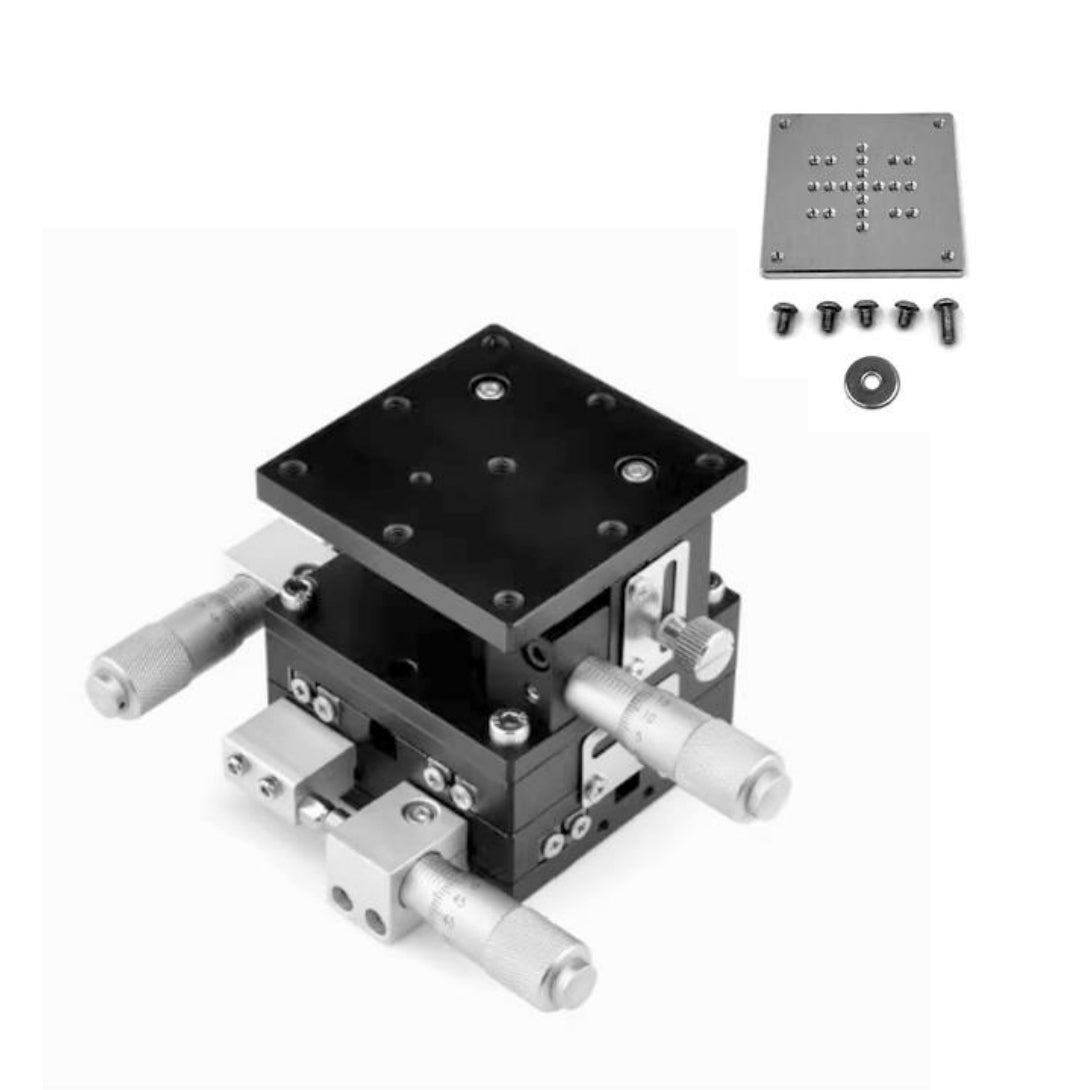

Selected option XYZ Precision Platform Only XYZ Precision Platform with Base Plate XYZ Precision Platform with Base Plate & Brass Vise

Product variants

Quantity

Free Shipping & Customs Clearance Included

XYZ Axis Precision Fine Tuning Cross Slide 60x60mm – Micro Adjustment Platform for Accurate Positioning and Drilling

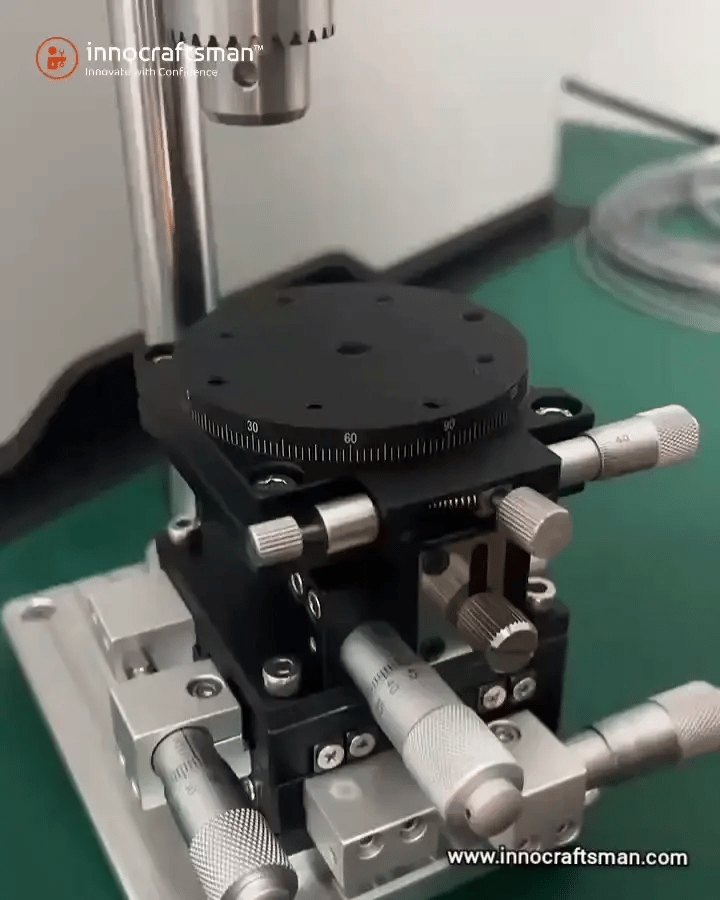

The XYZ Axis Precision Fine Tuning Cross Slide 60x60mm is a high-accuracy micro-positioning platform designed for ultra-precise adjustments in all three axes. Its standout feature is the ability to raise or lower a mounted workpiece or fixture with fine micro-feed control—making it ideal for applications like drill presses, milling, engraving, or any task requiring delicate vertical or horizontal alignment.

Perfectly suited for precision work, this platform allows you to fine-tune the position of your material with micrometer-level control. A mounting plate can be attached underneath for added stability, while the top surface is designed to accommodate precision vises, giving you flexibility for various setups and tool compatibility.

Whether you're a jeweler, hobbyist, model maker, or machinist, this compact 60x60mm cross slide platform delivers exceptional control, reliability, and versatility for detailed, accurate work.

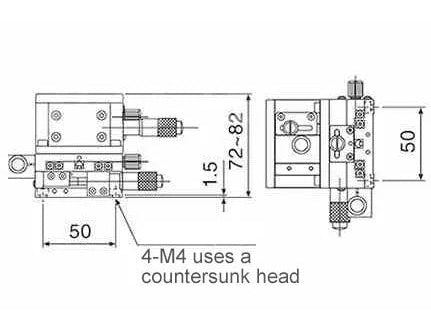

Specifications – XYZ Axis Precision Fine Tuning Cross Slide 60x60mm

Table size: 60mm × 60mm (2.4 * 2.4in)
Material: Aluminum alloy
Travel: ±6.5mm for XY axis; 10mm for Z axis
Load: 29.6N(3kgf)
Material: aluminum alloy
Minimum graduation: 0.01mm
Depth of parallelism: 0.03mm
Net weight: 0.87kg
