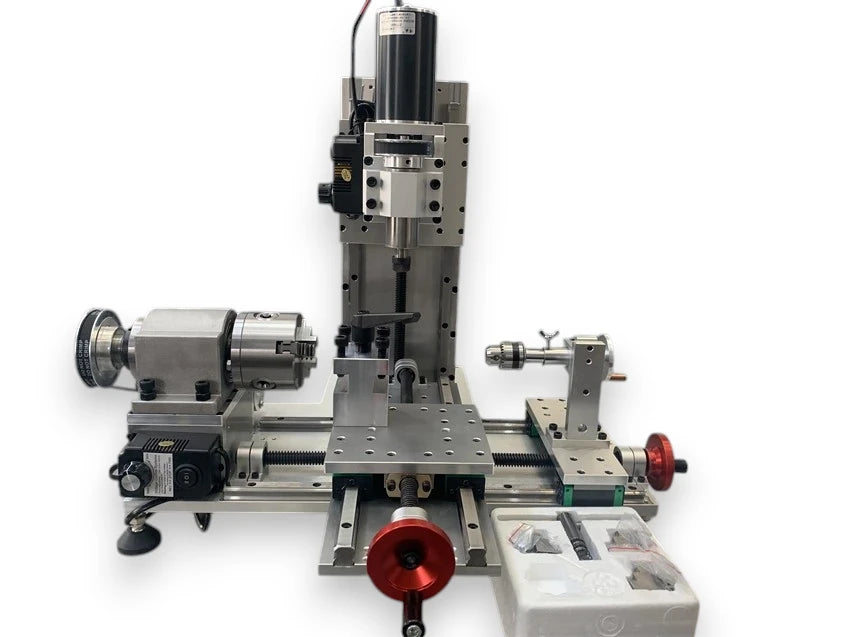

Innocraftsman™ Mini Lathe-Milling Machine

Innocraftsman™ Mini Lathe-Milling Machine

$1,070.00 USD
$600.00 USD $1,070.00 USD
Sale Sold out
Shipping calculated at checkout.

Motor

  • Replacement Parts Service - Free replacement of faulty parts within 6 months

Shipping

  • 5-6 business days for assembly and preparation for shipment.
  • 7-15 business days for delivery, depending on the destination.
  • For European countries: customs fees included.

  • Lathe Functionality: Features a 350W (or 680W) high-torque motor with adjustable speed and 80mm manual three-jaw chuck, allowing for a maximum processing diameter of 60mm and length of 160mm. Ideal for working with copper, iron, aluminum, stainless steel (304), and 45 steel.
  • Milling Functionality: designed for precise milling of soft metal with 350W (or 680W) motor and adjustable speed.
  • Multifunctional Use: Supports turning, milling, and drilling, making it an excellent choice for hobbyists, machinists, and small workshops.
  • Space-Saving Build: With overall dimensions of 610 × 610 × 510mm (L×W×H), this machine is perfect for home workshops while delivering industrial-grade performance.
  • XYZ Travel: Offers a 140mm travel range, utilizing precision 15 guide rails with installation slots—eliminating the need for additional gauges.
  • Enhanced Stability: Built with 14 slider blocks and a T14 screw with double nuts, effectively reducing backlash for smooth operation.
  • Lathe Compatibility: Supports cutting tools in 8mm, 10mm, 12mm, and 14mm square sizes, offering flexibility for different machining needs.
  • The ER11 milling spindle operates without power, features four bearings, and supports a maximum clamping capacity of 8mm.
  • Compatible with 2-inch vises (pressure plate included; vise not included).
  • Tail Stock: chuck stroke 35mm, tail stock stroke 160mm (independent operation), drill chuck clamp clamping is: 0.6-6mm
  • Turning Length: ≤160mm
  • Milling machine stroke: 140x180mm
  • Weight: ~33KG
  • Input voltage: 220V / 110V(equiped with a US standard adapter)
